Bison 8.6" Low
Profile 4-Jaw Flange Mount Scroll chuck
7-640-0840
Model Number 9417
|

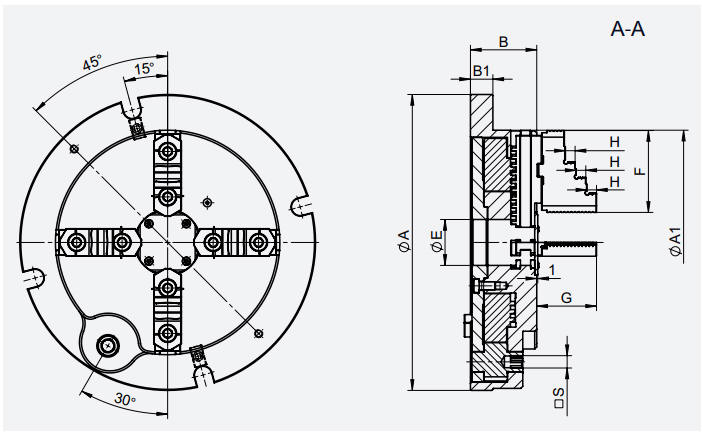

A
DIA. |
A1
DIA. |
B |
B1 |
E
DIA. |
F |
G |
H |
J |
K |
L |
M |
S |
N x J |
WT.(kg) |
|
11.4" |
8.6" |
2.5" |
.866" |
1.77" |
3.14" |
2.30' |
.374" |
1.06" |
.669" |
.472" |
- |
.433" |
4 |
24.1 |
|
FEATURES |
- A milling fixture in the form of a
scroll lathe chuck with 2 piece jaws, integrated with the base.
- Depending on the adaption, it can be
used on milling machine tables, t-towers, drill tables, or
surface grinders.
- It has a mechanism drive from the
front of the fixture, you can use a standard wrench with a
spring or a ratchet knob with a cap.
- The fixture is sealed against chips,
the center by a cover, and the guides by extra teeth on the jaw.
- It has two locating keys and 4
recesses for fastening screws to be fixed to the
table/tower/pallet. It is possible to attach it by the
flange of the fixture with toe clamps to the machine table.
- The fixture is low profile, which is
and advantage for machine tools with a short z-axis travel,
because it does not limit the machine's movements like a chuck
with a base.
- when the profile is as low as
possible, standard 3200 soft jaw blanks can be used and shaped
accordingly.
|
|
