" 4-Jaw Independent Chucks
Semi-Steel, D1- Mount, Solid Jaws
 Model 4344-8" - 5

Item Number: 7-853-0835

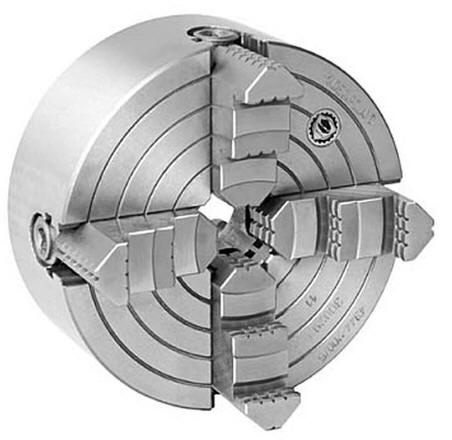

4-Jaw (Solid) Independent Chuck Semi-Steel Body Camlock D 8 in D1-5 Bison-Bial

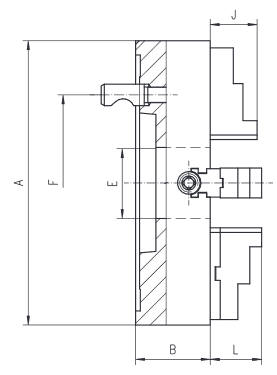

Technical Data

Chuck Size (Diameter D)

Inch

 8
Taper Size Mount   D1-5
Weight lb. 37
Thru hole Diameter Inch 1.968
G Inch 3.250
B Inch 4.126
C Inch .590
H Inch 3.149
Camlock stud thread   M12x1
Camlock Stud diameter Inch 3/4
Number Of Camlock Studs Inch 6



Clamping Range

d1 Minumum inch .394
d2 maximum inch 7-874
d3 inch 1.772
