" 4-Jaw Independent Chucks
Semi-Steel, D1- Mount, Solid Jaws
 Model 4344-10" - 6

Item Number: 7-853-1036

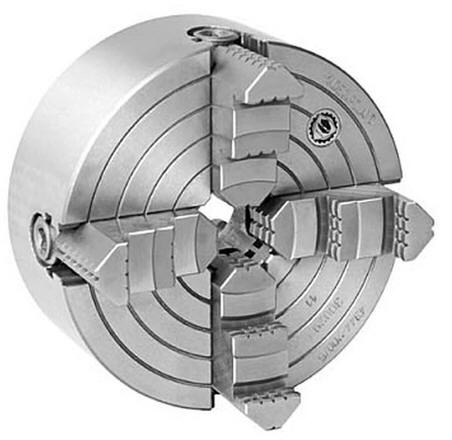

4-Jaw (Solid) Independent Chuck Semi-Steel Body Camlock D 10in D1-6 Bison-Bial

Technical Data

Chuck Size (Diameter D)

Inch

 10
Taper Size Mount   D1-6
Weight lb. 61
Thru hole Diameter Inch 2.5591
G Inch 4.188
B Inch 5.252
C Inch .629
H Inch 3.346
Camlock stud thread
Camlock Stud diameter Inch 7/8
Number Of Camlock Studs Inch 6



Clamping Range

d1 Minumum inch .394
d2 maximum inch 9.843
d3 inch 2.559
