Chuck Dia |
in |
8 |
|
Max Swing of Top Jaws |
in |
10.945 |
|
Max Draw Bar Pull Force |
lbf |
7496 |
|
Max Gripping Force |
lbf |
18959 |
|
Max Speed |
RPM |
5000 |
|
Moment of Inertia |
lb*ft2 |
3.53 |
|
Weight without Top Jaws |
lb |
41.9 |
|
|
|
A |
in |
8.2677 |
|
B |
in |
3.74 |
|
C |
in |
3.6453 |
|
D H6 |
in |
6.6929 |
|
E |
in |
0.2362 |
|
F |
in |
5.252 |
|
G 6 Bolts |
mm |
M12 |
|
H |
in |
0.5512 |
|
J |
in |
1.1811 |
|
K |
in |
2.5984 |
|
L (max) |
mm |
M60 x 2 |
|
Max Wedge Stroke M |
in |
0.6299 |
|
O |
in |
0.8071 |
|
Thru Hole |
in |
2.0472 |
|
R |
in |
3.622 |
|
S |
in |
0.1024 |
|
T |
in |
0.1343 |
|
U min |
in |
-0.0197 |
|
U max |
in |
0.6102 |
|
Jaw Travel a |
in |
0.1457 |
|
b min |
in |
1.3858 |
|
b max |
in |
1.5315 |
|
c min |
in |
0.4134 |
|
c max |
in |
1.2992 |
|
Jaw Bolts d |
mm |
M12 |
|
e |
in |
0.9843 |
|
f |
in |
2.5984 |
|
 |
|
T-Slot g (H7) |
in |
0.5512 |
|
h |
in |
1.575 |
|
 |
|

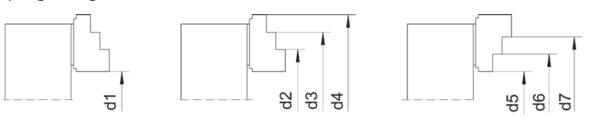

d1 |
|
.6299 - 4.3700 |
|
d2 |
|
1.1496 - 6.7717 |
|
d3 |
|
5.0394 - 8.7402 |
|
d4 |
|
7.0079 - 10.7087 |
|
d5 |
|
.6299 - 4.3701 |
|
d6 |
|
2.5197 - 6.3386 |
|
d7 |
|
4.5669 - 8.3071 |
|
 |
|
Bison Model Number |
|
2405-K |
|
2012 Mega Catalog |
Page |
479, 480 |
|
|
